The robust construction of the SBCF large chamber furnace makes it ideal for applications such as the heat treatment of steels and alloys, ceramics sintering and aerospace heat treatment.

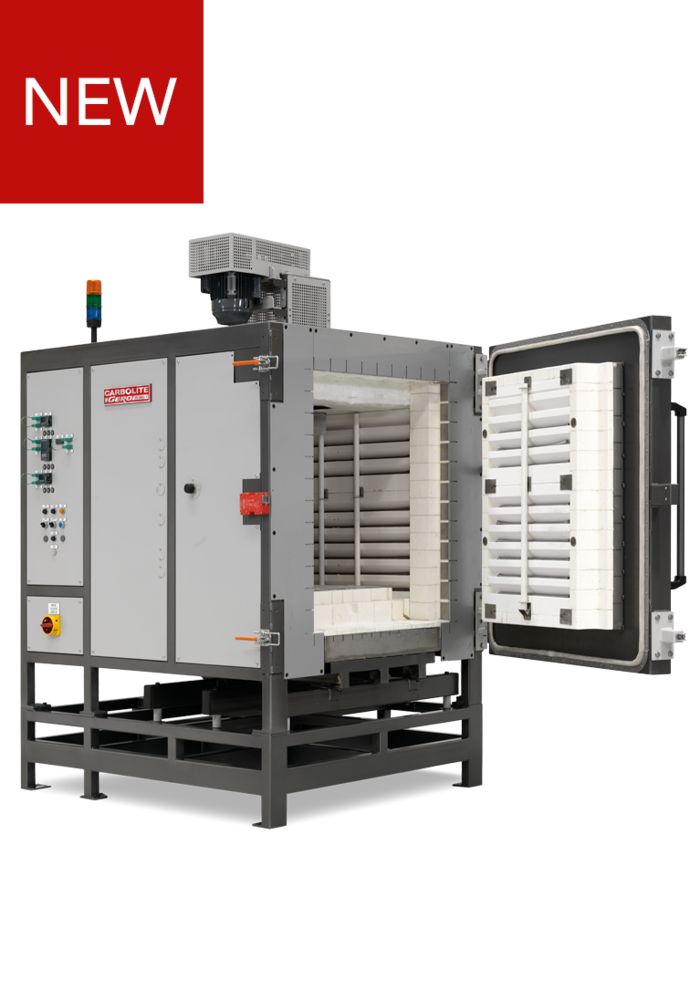

 The SBCF chamber furnace is an industrial scale furnace based on a modular design principle which can be adapted to various applications. The furnace chamber is cubic in shape and is available in three sizes.

 The furnace has a side hinged door and a fixed hearth. As an option the hearth can fitted to a bogie so it can be pulled out of the furnace on a track system. This hearth design technique also allows the furnace to be easily adapted to a vertical lift arrangement to provide an elevator hearth, in which case the door would become a fixed side of the chamber.

Under hearth heating and free radiating coiled wire elements on four sides. This design provides the option of single and 3-zone temperature control and for applications demanding the best uniformity possible, such as AMS 2750E (this can be combined with an optional air circulation fan).

The construction uses low thermal mass insulation materials to maximise running efficiency whilst using robust refractory materials where physical strength is required such as the loading area of the hearth. Silicon carbide (SiC) tiles are fitted on the hearth to provide a hard wearing surface.

1100 ℃ maximum operating temperature

Single zone models fitted with programmable 3508P1

3-zone models fitted with 1 x programmable 3508P1 and 2 x 3216CC slaves

Retransmission of setpoint on 3-zone models

过温保护

Furnace can meet the requirements of AMS2750E

Under hearth heating and free radiating coiled wire elements on four sides

Excellent temperature uniformity and control

Robust construction ensures safe outer case temperature

Double skin construction ensures safe outer case temperature

耐磨碳化硅炉床

选项(订购时详细标注要求)

Temperature interlocked door

Bogie hearth

Vertical air circulation fan

Available with various instrumentation and data acquisition options

内容可能会被修改或更正。

SBCF-1/11/500

SBCF-1/11/1700

SBCF-1/11/3300

SBCF-3/11/500

SBCF-3/11/1700

SBCF-3/11/3300

请注意：
- Maximum continuous operating temperature is 100 °C below maximum temperature
