Multi-lanes Vertical Packing Machines CB6L-320/CB8L-450

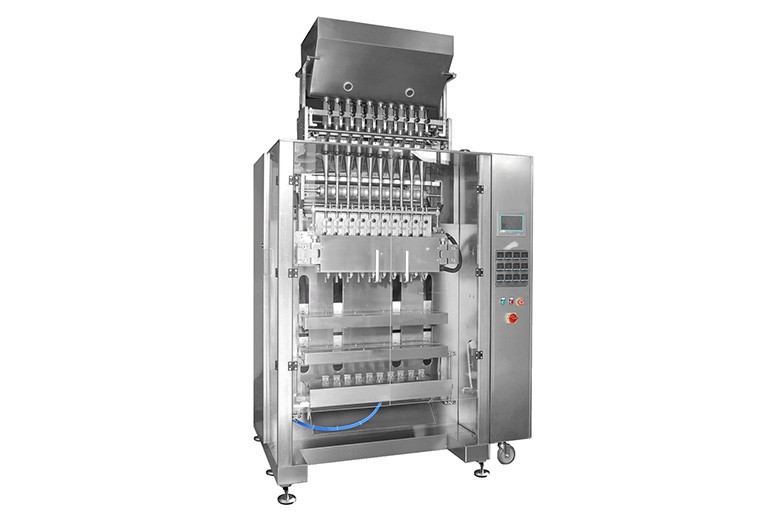

Multi-lanes Vertical Packing Machines CB6L-320/CB8L-450图片
产品介绍

Description

  • High-precision film transporting system

  • PLC program control, advanced touch interface

  • Photoelectric automatic location tracking

  • PID and other digital thermostat control

  • Easy to operate in a perfect structure

  • Match different metering device can be used for powder, liquid and thick liquid

Outstanding Features

  • Pioneering design to satisfy the packing requests of high accuracy and high capacity

  • Controlled by PLC which is international famous brand, with counting function

  • Each lane’s vertical seal with PID temperature controller to adjust the sealing temperature, more precise and avoid fault

  • The main machine is made of full stainless steel, corrosion resistance to adapt different production workshop environments

  • Bag type optional : back sealing stick bag or 3 side sealing or 4 side sealing sachet

Specification

ModelCB6L-320CB8L-450
Application Granule,Liquid,Powder
Max width of roll film320mm450mm
Packing film material Multi-layered filmMulti-layered film
Bag length 50-190mm50-190mm
Bag width 20-70mm20-70mm
Packing speed bags/min20-40/lane20-40/lane
Quantity of line2-68
Measuring range2-200ml2-200ml
Measuring accuracy+/- 5%+/- 5%
Air Pressure0.6Mpa0.6Mpa
Gas consumption 2.5m3/h2.5m3/h
Power380V,50HZ380V,50HZ
Outer dimension L1200xW1400xH2600mmL1200xW1500xH2600mm
Machine weigtht1600kg1900kg
